Easy Paper Operation Mechanism Low Voltage
Thermal Printer Mechanism

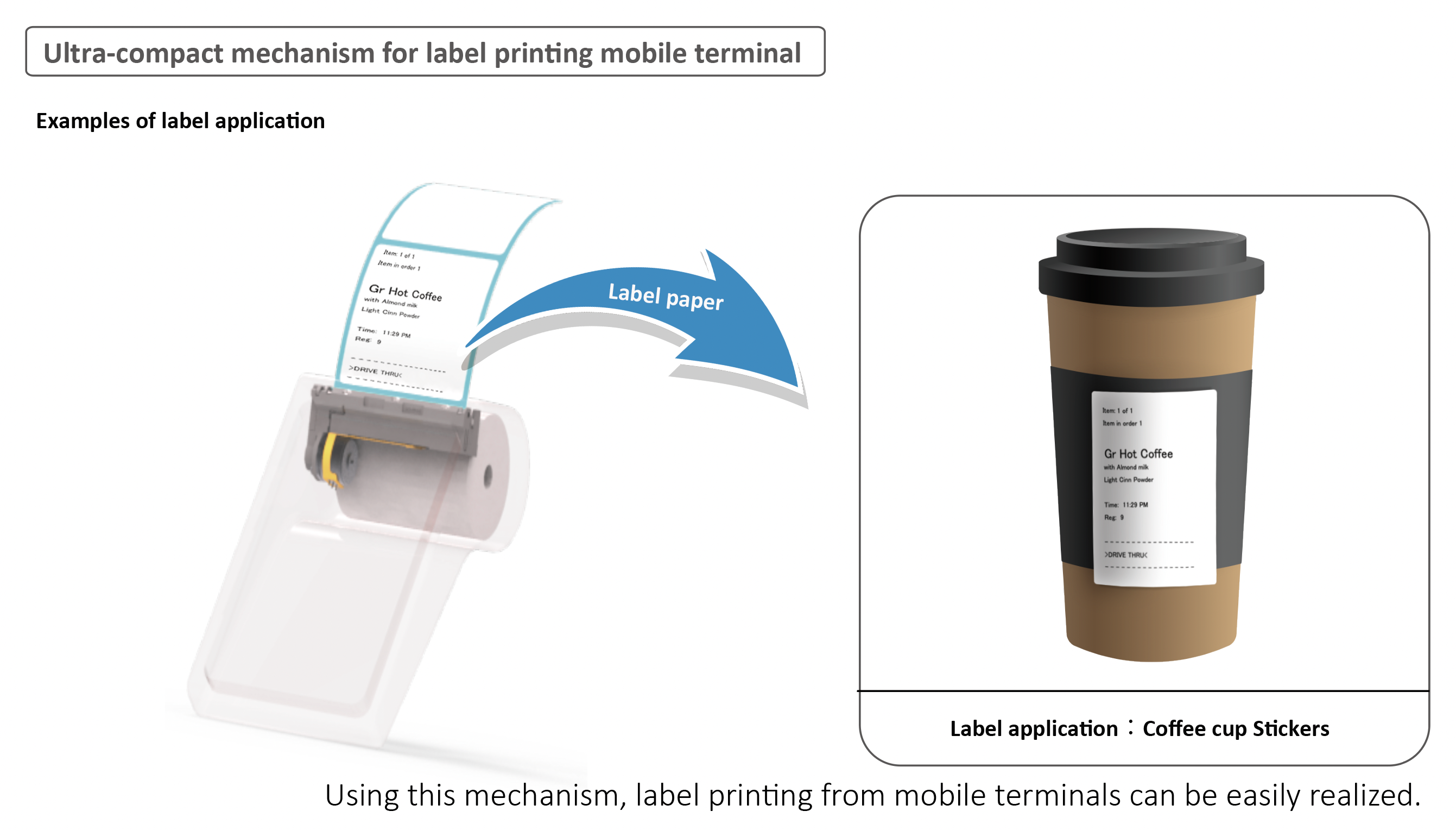

LTP02 (for Label)
- Extremely compact design for mobile terminal
- Light weight only 28g
| Model | LTP02-245-G1 | ||
|---|---|---|---|
| *1 Use recommended thermal papers. *2 Excluding protrusion. | |||
| Printing | Method | Thermal line dot printing | |
| Number of dots/line | 384 | ||
| Resolution (dots/mm) | 8 | ||
| Paper width (mm) | 58 |
||
| Printing width (mm) | 48 | ||
| Speed (mm/sec) max | 100 | ||
| Paper path | Semi-Straight | ||
| Detection | Head temperature | By thermistor | |
| Out of paper | By photo interrupter | ||
| Power supply (V) | Operation voltage (Vdd) | 3.0 to 3.6 | |
| Operation voltage (Vp) | 5.5 to 9.5 | ||
| Peak current (A) | Head | 2.64 (9.5V / 45 dots) | |
| Motor | 0.6 | ||
| Service Life | Receipt use | Pulse activation (pulse) | 100 million |
| Abrasion resistance (km) | 50*1 | ||
| Label use | Pulse activation (pulse) | 60 million | |
| Abrasion resistance (km) | 30*1 | ||
| Operating temperature (˚C) | Receipt use | -10 to 50 | |
| Label use | 5 to 50 | ||
| Dimensions (W×D×H mm) | 69.8 × 32.7 × 15.3**2 | ||
| Mass (g) | Approx. 44 | ||
